COXREELS® XTM "Extreme Duty" Series is designed for high demand industries requiring a level of construction above truck duty. Built with mining, off-road, heavy equipment, and heavy equipment lubrication in mind, the XTM series features the most robust offerings of the reel industry. This series is the combination of all the heavy duty features available inside a solid all-welded box frame, with an integral roller bracket, focused to deliver the toughest reel for the toughest environments and applications.

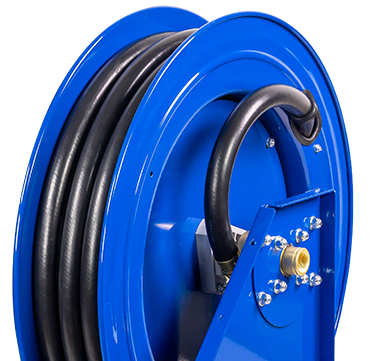

Model Shown: XTM-LP-550-F-OG. Please refer to Overall Dimensions for the different reel sizes available.

  • Swivel

    dropdown
    • External fluid path with machined from solid brass 90° full-flow NPT swivel inlet & swivel retaining plates
    • Swivel Seals: NITRILE
    • Electroless nickel plated steel swivel on 1" models
    • Zinc plated steel swivel on HP models

  • Design & Structure

    dropdown
    • Fully welded box frame construction, welded seams & redundant flanges. Wider frames feature Coxreels’ exclusive Super Hub™ triple axle support system
    • Accessible stainless steel pawl and pawl spring on ratchet locking mechanism
    • Stainless Steel rollers on all models
    • 1" solid steel axle & dual lubricated precision bearings for smooth & stable rotation

  • Retract

    dropdown
    • Enclosed factory tuned & matched cartridge-style spring motor
    • Non-corrosive stainless steel spring, pawl & zinc plated ratchet
    • Multi-position lock ratchet mechanism secures hose at desired length

  • Signature Features

    dropdown
    • Professional grade heavy duty steel construction
    • Rolled edges & ribbed discs provide strength & safety
    • Leading 2-year manufacturer's limited warranty
    • Made in the U.S.A. - Sold & Supported Worldwide

    • SWIVEL - External fluid path with machined from solid brass 90° full-flow NPT swivel inlet & swivel retaining plates
    • BOX FRAME - Fully welded box frame construction, welded seams & redundant flanges. Wider frames feature Coxreels’ exclusive Super Hub™ triple axle support system
    • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
    • PRECISION BEARINGS - 1" solid steel axle & dual lubricated precision bearings for smooth & stable rotation.
    • OTHER FEATURES INCLUDE - Enclosed factory tuned & matched cartridge-style spring motor, long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and stainless steel rollers.

View Models
Share

Models

Hose/Cord/Cable Included
I.D
Max PSI
Hose / Cord Length
By Application
Filter Your Results
  • Low Pressure (Max 1000psi)
    dropdown
    XTM Series
    Model
    XTM-LP-3100
    I.D3/8"
    O.D5/8"
    Length100'
    HoseYes
    Max PSI300
    Ship Weight (lbs)92
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-LP-375
    I.D3/8"
    O.D5/8"
    Length75'
    HoseYes
    Max PSI300
    Ship Weight (lbs)89
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-LP-4100
    I.D1/2"
    O.D3/4"
    Length100'
    HoseYes
    Max PSI300
    Ship Weight (lbs)96
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-LP-475
    I.D1/2"
    O.D3/4"
    Length75'
    HoseYes
    Max PSI300
    Ship Weight (lbs)92
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-LP-550
    I.D3/4"
    O.D1-1/6"
    Length50'
    HoseYes
    Max PSI300
    Ship Weight (lbs)94
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-LP-575
    I.D3/4"
    O.D1-1/6"
    Length50'
    HoseYes
    Max PSI300
    Ship Weight (lbs)101
    Overall Dimensions (W) (H) (L)12.75"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 12.75"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-LP-650
    I.D1"
    O.D1-1/2"
    Length50'
    HoseYes
    Max PSI300
    Ship Weight (lbs)114
    Overall Dimensions (W) (H) (L)12.75"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 11.69"(M) 10"(N)
    Base (X) (Y) 12.75"(X) 15"(Y)
    CAD Downloads Request CAD File

  • Medium Pressure (From 1000psi to 4000psi)
    dropdown
    XTM Series
    Model
    XTM-MP-3100
    I.D3/8"
    O.D11/16"
    Length100'
    HoseYes
    Max PSI3000
    Ship Weight (lbs)99
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MP-350
    I.D3/8"
    O.D11/16"
    Length50'
    HoseYes
    Max PSI3000
    Ship Weight (lbs)91
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MP-375
    I.D3/8"
    O.D11/16"
    Length75'
    HoseYes
    Max PSI3000
    Ship Weight (lbs)95
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MP-4100
    I.D1/2"
    O.D13/16"
    Length100'
    HoseYes
    Max PSI2500
    Ship Weight (lbs)104
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MP-450
    I.D1/2"
    O.D13/16"
    Length50'
    HoseYes
    Max PSI2,500
    Ship Weight (lbs)93
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MP-475
    I.D1/2"
    O.D13/16"
    Length75'
    HoseYes
    Max PSI2500
    Ship Weight (lbs)98
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MP-550
    I.D3/4"
    O.D1-1/16"
    Length50'
    HoseYes
    Max PSI1500
    Ship Weight (lbs)97
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MP-575
    I.D3/4"
    O.D1-1/16"
    Length75'
    HoseYes
    Max PSI1500
    Ship Weight (lbs)108
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MP-650
    I.D1"
    O.D1-3/8"
    Length50'
    HoseYes
    Max PSI1250
    Ship Weight (lbs)110
    Overall Dimensions (W) (H) (L)12.75"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 11.69""(M) 10"(N)
    Base (X) (Y) 12.75"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MPL-3100
    I.D3/8"
    O.D11/16"
    Length100'
    HoseNo
    Max PSI3000
    Ship Weight (lbs)81
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MPL-4100
    I.D1/2"
    O.D13/16"
    Length100'
    HoseNo
    Max PSI2500
    Ship Weight (lbs)81
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MPL-550
    I.D3/4"
    O.D1-1/16"
    Length50'
    HoseNo
    Max PSI1500
    Ship Weight (lbs)81
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MPL-575
    I.D3/4"
    O.D1-1/16"
    Length75'
    HoseNo
    Max PSI1500
    Ship Weight (lbs)83
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-MPL-650
    I.D1"
    O.D1-3/8"
    Length50'
    HoseNo
    Max PSI1250
    Ship Weight (lbs)83
    Overall Dimensions (W) (H) (L)12.75"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 11.69""(M) 10"(N)
    Base (X) (Y) 12.75"(X) 15"(Y)
    CAD Downloads Request CAD File

  • High Pressure (4000psi and up)
    dropdown
    XTM Series
    Model
    XTM-HP-350
    I.D3/8"
    O.D11/16"
    Length50'
    HoseYes
    Max PSI4000
    Ship Weight (lbs)96
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-HP-375
    I.D3/8"
    O.D11/16"
    Length75'
    HoseYes
    Max PSI4000
    Ship Weight (lbs)103
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

    XTM-HPL-375
    I.D3/8"
    O.D11/16"
    Length75'
    HoseNo
    Max PSI4000
    Ship Weight (lbs)81
    Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
    Mounting Pattern (M) (N) 8.91"(M) 10"(N)
    Base (X) (Y) 10"(X) 15"(Y)
    CAD Downloads Request CAD File

XTM Series
Model
XTM-LP-3100
I.D3/8"
O.D5/8"
Length100'
HoseYes
Max PSI300
Ship Weight (lbs)92
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-LP-375
I.D3/8"
O.D5/8"
Length75'
HoseYes
Max PSI300
Ship Weight (lbs)89
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-LP-4100
I.D1/2"
O.D3/4"
Length100'
HoseYes
Max PSI300
Ship Weight (lbs)96
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-LP-475
I.D1/2"
O.D3/4"
Length75'
HoseYes
Max PSI300
Ship Weight (lbs)92
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-LP-550
I.D3/4"
O.D1-1/6"
Length50'
HoseYes
Max PSI300
Ship Weight (lbs)94
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-LP-575
I.D3/4"
O.D1-1/6"
Length50'
HoseYes
Max PSI300
Ship Weight (lbs)101
Overall Dimensions (W) (H) (L)12.75"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 12.75"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-LP-650
I.D1"
O.D1-1/2"
Length50'
HoseYes
Max PSI300
Ship Weight (lbs)114
Overall Dimensions (W) (H) (L)12.75"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 11.69"(M) 10"(N)
Base (X) (Y) 12.75"(X) 15"(Y)
CAD Downloads Request CAD File

Model I.DO.DLengthHoseMax PSIShip Weight (lbs) Overall Dimensions (W) (H) (L) Mounting Pattern (M) (N) Base (X) (Y) CAD Downloads
XTM-LP-31003/8"5/8"100'Yes3009210.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-LP-3753/8"5/8"75'Yes3008910.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-LP-41001/2"3/4"100'Yes3009610.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-LP-4751/2"3/4"75'Yes3009210.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-LP-5503/4"1-1/6"50'Yes3009410.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-LP-5753/4"1-1/6"50'Yes30010112.75"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  12.75"(X) 15"(Y)  Request CAD File
XTM-LP-6501"1-1/2"50'Yes30011412.75"(W) 26.13"(H) 24.06"(L)  11.69"(M) 10"(N)  12.75"(X) 15"(Y)  Request CAD File
XTM Series
Model
XTM-MP-3100
I.D3/8"
O.D11/16"
Length100'
HoseYes
Max PSI3000
Ship Weight (lbs)99
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MP-350
I.D3/8"
O.D11/16"
Length50'
HoseYes
Max PSI3000
Ship Weight (lbs)91
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MP-375
I.D3/8"
O.D11/16"
Length75'
HoseYes
Max PSI3000
Ship Weight (lbs)95
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MP-4100
I.D1/2"
O.D13/16"
Length100'
HoseYes
Max PSI2500
Ship Weight (lbs)104
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MP-450
I.D1/2"
O.D13/16"
Length50'
HoseYes
Max PSI2,500
Ship Weight (lbs)93
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MP-475
I.D1/2"
O.D13/16"
Length75'
HoseYes
Max PSI2500
Ship Weight (lbs)98
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MP-550
I.D3/4"
O.D1-1/16"
Length50'
HoseYes
Max PSI1500
Ship Weight (lbs)97
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MP-575
I.D3/4"
O.D1-1/16"
Length75'
HoseYes
Max PSI1500
Ship Weight (lbs)108
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MP-650
I.D1"
O.D1-3/8"
Length50'
HoseYes
Max PSI1250
Ship Weight (lbs)110
Overall Dimensions (W) (H) (L)12.75"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 11.69""(M) 10"(N)
Base (X) (Y) 12.75"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MPL-3100
I.D3/8"
O.D11/16"
Length100'
HoseNo
Max PSI3000
Ship Weight (lbs)81
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MPL-4100
I.D1/2"
O.D13/16"
Length100'
HoseNo
Max PSI2500
Ship Weight (lbs)81
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MPL-550
I.D3/4"
O.D1-1/16"
Length50'
HoseNo
Max PSI1500
Ship Weight (lbs)81
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MPL-575
I.D3/4"
O.D1-1/16"
Length75'
HoseNo
Max PSI1500
Ship Weight (lbs)83
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-MPL-650
I.D1"
O.D1-3/8"
Length50'
HoseNo
Max PSI1250
Ship Weight (lbs)83
Overall Dimensions (W) (H) (L)12.75"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 11.69""(M) 10"(N)
Base (X) (Y) 12.75"(X) 15"(Y)
CAD Downloads Request CAD File

Model I.DO.DLengthHoseMax PSIShip Weight (lbs) Overall Dimensions (W) (H) (L) Mounting Pattern (M) (N) Base (X) (Y) CAD Downloads
XTM-MP-31003/8"11/16"100'Yes30009910.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MP-3503/8"11/16"50'Yes30009110.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MP-3753/8"11/16"75'Yes30009510.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MP-41001/2"13/16"100'Yes250010410.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MP-4501/2"13/16"50'Yes2,5009310.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MP-4751/2"13/16"75'Yes25009810.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MP-5503/4"1-1/16"50'Yes15009710.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MP-5753/4"1-1/16"75'Yes150010810.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MP-6501"1-3/8"50'Yes125011012.75"(W) 26.13"(H) 24.06"(L)  11.69""(M) 10"(N)  12.75"(X) 15"(Y)  Request CAD File
XTM-MPL-31003/8"11/16"100'No30008110.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MPL-41001/2"13/16"100'No25008110.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MPL-5503/4"1-1/16"50'No15008110.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MPL-5753/4"1-1/16"75'No15008310.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-MPL-6501"1-3/8"50'No12508312.75"(W) 26.13"(H) 24.06"(L)  11.69""(M) 10"(N)  12.75"(X) 15"(Y)  Request CAD File
XTM Series
Model
XTM-HP-350
I.D3/8"
O.D11/16"
Length50'
HoseYes
Max PSI4000
Ship Weight (lbs)96
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-HP-375
I.D3/8"
O.D11/16"
Length75'
HoseYes
Max PSI4000
Ship Weight (lbs)103
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

XTM-HPL-375
I.D3/8"
O.D11/16"
Length75'
HoseNo
Max PSI4000
Ship Weight (lbs)81
Overall Dimensions (W) (H) (L)10.13"(W) 26.13"(H) 24.06"(L)
Mounting Pattern (M) (N) 8.91"(M) 10"(N)
Base (X) (Y) 10"(X) 15"(Y)
CAD Downloads Request CAD File

Model I.DO.DLengthHoseMax PSIShip Weight (lbs) Overall Dimensions (W) (H) (L) Mounting Pattern (M) (N) Base (X) (Y) CAD Downloads
XTM-HP-3503/8"11/16"50'Yes40009610.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-HP-3753/8"11/16"75'Yes400010310.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
XTM-HPL-3753/8"11/16"75'No40008110.13"(W) 26.13"(H) 24.06"(L)  8.91"(M) 10"(N)  10"(X) 15"(Y)  Request CAD File
Icon
Proposition 65 Warning: Cancer and Reproductive Harm www.P65Warnings.ca.gov (California Residents Click Here)

Contact Us

Have questions? We are here for you. Please feel free to get in touch with us using the tabs and forms below to contact us and request more information about COXREELS® products and services. We will handle your inquiries and will get back to you as soon as we can.
Contact Us

Find Distributors

Distributor information will be provided through your preferred method of contact. Click here to submit a request that will be routed to the appropriate distributor.
Find a Distributor

Tap to Call Tap to Email
Loading
