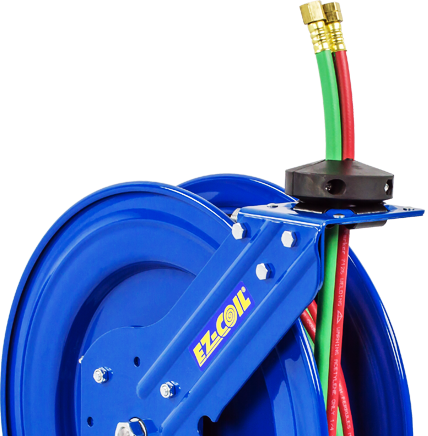

EZ-SHW Series // EZ Coil Specialty Reels

Features

• Swivel


  • External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
  • Swivel Seals: VITON®

  • Swivel lock bracket ensures maximum safety

• Design & Structure


  • Single pedestal reel with space saving design facilitates workplace organization
  • Guide arm adjusts to wall, floor & overhead positions

• Retract


  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non-corrosive stainless steel spring, pawl & zincnplated ratchet
  • Multi-position lock ratchet mechanism secures hose atndesired length

• Signature Features


  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

  • WELDING GAS SWIVEL - External 90º full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.

  • EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.


  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.

  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support


  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.

  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, oxygen-acetylene or "T" grade welding hose, and sturdy permanently lubricated precision bearings

• WELDING GAS SWIVEL

  External 90◦ full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.

• EZ-COIL EQUIPPED

  Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.

• CNC SPUN DISCS

  Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.

• 1/4" STEEL BASE

  Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support

• MULTI-POSITION GUIDE ARM

  Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.

• OTHER FEATURES INCLUDE

  Long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, oxygen-acetylene welding hose, and sturdy permanently lubricated precision bearings.
