EZ-SH Series // EZ Coil Hose Reels
-
Features
-
Applications
Features
COXREELS® EZ-SH Series "Super Hub" spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels' original Super Hub dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.

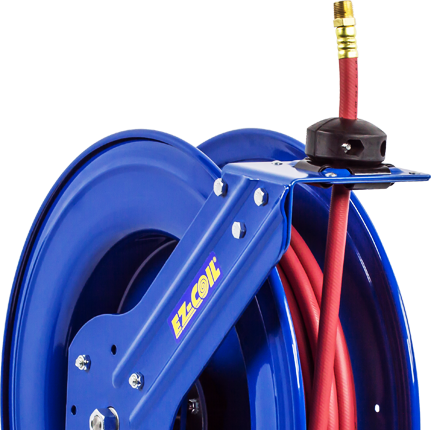

Model Shown: EZ-SH-350. Please refer to Overall Dimensions for the different reel sizes available.
Swivel
- External fluid path with machined from solid brass 90º full-flow NPT swivel inlet
(Zinc plated steel swivel on HP models) - Swivel Seals: NITRILE
- External fluid path with machined from solid brass 90º full-flow NPT swivel inlet
Design & Structure
- Sturdy single pedestal reel features Coxreels' exclusive Super Hub dual axle support system
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Solid one piece, heavy gauge ¼" steel base & support post for maximum stability
- 1" solid steel axle & lubricated precision bearings for smooth rotation
Retract
- Controlled retraction speed up to 80% slower
- Enclosed factory tuned & matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl & zincnplated ratchet
- Multi-position lock ratchet mechanism secures hose atndesired length
Signature Features
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- SWIVEL - Machined from solid brass 90º full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
View Models
Models
- Low Pressure (Max 1000psi)
- Medium Pressure (From 1000psi to 4000psi)
- High Pressure (4000psi and up)
| Model | I.D | O.D | Length | Hose | Max PSI | Ship Weight (lbs) | Overall Dimensions (W) (H) (L) | Mounting Pattern (M) (N) | Base (X) (Y) | CAD Downloads | |
| EZ-SH-3100 | 3/8" | 5/8" | 100' | Yes | 300 | 71 | 8.25"(W) 21.25"(H) 24"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | CAD File | |
| EZ-SH-350 | 3/8" | 5/8" | 50' | Yes | 300 | 50 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | CAD File | |
| EZ-SH-375 | 3/8" | 5/8" | 75' | Yes | 300 | 50 | 8.25"(W) 25.5"(H) 24"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | CAD File | |
| EZ-SH-4100 | 1/2" | 3/4" | 100' | Yes | 300 | 81 | 8.75"(W) 25.5"(H) 24"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-SH-450 | 1/2" | 3/4" | 50' | Yes | 300 | 54 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | CAD File | |
| EZ-SH-475 | 1/2" | 3/4" | 75' | Yes | 300 | 68 | 8.75"(W) 25.5"(H) 24"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-SH-525 | 3/4" | 1 1/16" | 25' | Yes | 300 | 52 | 9.38"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | CAD File | |
| EZ-SH-550 | 3/4" | 1 1/16" | 50' | Yes | 300 | 69 | 9.88"(W) 25.5"(H) 24"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | CAD File | |
| EZ-SHL-3100 | 3/8" | 5/8" | 100' | No | 300 | 60 | 8.25"(W) 21.25"(H) 24"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-SHL-350 | 3/8" | 5/8" | 50' | No | 300 | 44 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-SHL-375 | 3/8" | 5/8" | 75' | No | 300 | 59 | 8.25"(W) 21.25"(H) 24"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-SHL-4100 | 1/2" | 3/4" | 100' | No | 300 | 66 | 8.75"(W) 25.5"(H) 24"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-SHL-450 | 1/2" | 3/4" | 50' | No | 300 | 46 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-SHL-475 | 1/2" | 3/4" | 75' | No | 300 | 57 | 8.75"(W) 25.5"(H) 24"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-SHL-525 | 3/4" | 1 1/16" | 25' | No | 300 | 45 | 9.38"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-SHL-550 | 3/4" | 1 1/16" | 50' | No | 300 | 56 | 9.88"(W) 25.5"(H) 24"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File |
| Model | I.D | O.D | Length | Hose | Max PSI | Ship Weight (lbs) | Overall Dimensions (W) (H) (L) | Mounting Pattern (M) (N) | Base (X) (Y) | CAD Downloads | |
| EZ-MP-350 | 3/8" | 11/16" | 50' | No | 3000 | 65 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-MP-450 | 1/2" | 13/16" | 50' | Yes | 2500 | 67 | 8.75"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-MPL-350 | 3/8" | 11/16/" | 50' | No | 3000 | 53 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-MPL-450 | 1/2" | 13/16" | 50' | No | 2500 | 53 | 8.75"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File |
| Model | I.D | O.D | Length | Hose | Max PSI | Ship Weight (lbs) | Overall Dimensions (W) (H) (L) | Mounting Pattern (M) (N) | Base (X) (Y) | CAD Downloads | |
| EZ-HP-150 | 1/4" | 9/16" | 50' | Yes | 5000 | 64 | 8.75"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-HP-350 | 3/8" | 11/16" | 50' | Yes | 4000 | 65 | 9.25"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-HPL-150 | 1/4" | 9/16" | 50' | No | 5000 | 53 | 8.75"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File | |
| EZ-HPL-350 | 3/8" | 11/16" | 50' | No | 4000 | 53 | 9.25"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) | Request CAD File |
