EZ-SG Series // EZ Coil Hose Reels
-
Features
-
Applications
Features
Coxreels® EZ-SG Series expand the capabilities of the “Side Mount” spring driven hose reels, adding a multi-position guide arm for maximum and convenient hose control. Ideal for tight spaces, the versatile SG Series (for air/water, oil and grease) feature a simple two-bolt mounting pattern for easy installation and detachment on any vertical flat surface. Common applications include service vehicles, tool benches, vertical walls and beams, vehicle lift systems, machine tools and more. The guide arm and roller assembly are easily moved to one of the six different positions with a standard ½” wrench.

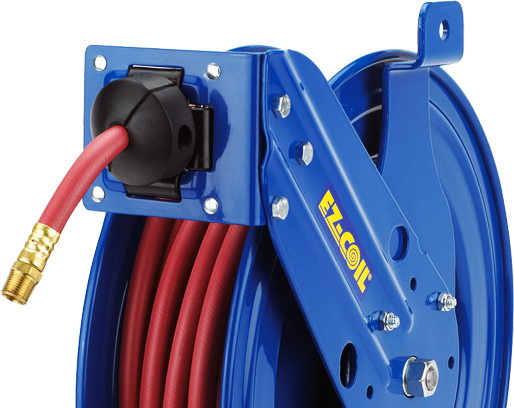

Model Shown: EZ-SG13-L350. Please refer to Overall Dimensions for the different reel sizes available.
Swivel
- External fluid path with machined from solid brass 90°full-flow NPT swivel inlet.
Zinc plated steel swivel on HP models.
- Swivel Seals: NITRILE
- External fluid path with machined from solid brass 90°full-flow NPT swivel inlet.
Design & Structure
- Side mount design for vertical flat surface, cabinet ornenclosed space mounts
- 2-bolt mounting pattern easily mounts & detaches for temporary or permanent installation
- Solid one piece, heavy gauge steel arm base for maximum stability
- 1" solid steel axle & lubricated precision bearings for smooth rotation
Retract
- Enclosed factory tuned & matched cartridge-style spring motor
- Non corrosive stainless steel spring, pawl & zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length.
Signature Features
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- SIDE MOUNT DESIGN - Side mount for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
- MULTI-POSITION GUIDE ARM - Adjustable 6 positions guide arm and roller assembly provide maximum hose control.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose, and sturdy permanently lubricated precision bearings.
View Models
Models
- Low Pressure (Max 1000psi)
- Medium Pressure (From 1000psi to 4000psi)
- High Pressure (4000psi and up)
| Model | I.D | O.D | Length | Hose | Max PSI | Ship Weight (lbs) | Overall Dimensions (W) (H) (L) | Mounting Pattern (M) (N) | Base (X) (Y) | CAD Downloads | |
| EZ-SG13-L125 | 1/4" | 1/2" | 25' | Yes | 300 | 25 | 6.25"(W) 15.5"(H) 13.5"(L) | 14"(M) -"(N) | -"(X) 2.5"(Y) | CAD File | |
| EZ-SG13-L135 | 1/4" | 1/2" | 35' | Yes | 300 | 26 | 6.25"(W) 15.5"(H) 13.5"(L) | 14"(M) -"(N) | -"(X) 2.5"(Y) | CAD File | |
| EZ-SG13-L325 | 3/8" | 5/8" | 25' | Yes | 300 | 26 | 6.75"(W) 15.5"(H) 13.5"(L) | 14"(M) -"(N) | -"(X) 2.5"(Y) | CAD File | |
| EZ-SG13L-L125 | 1/4" | 1/2" | 25' | No | 300 | 22 | 6.25"(W) 15.5"(H) 13.5"(L) | 14"(M) -"(N) | -"(X) 2.5"(Y) | Request CAD File | |
| EZ-SG13L-L325 | 3/8" | 5/8" | 25' | No | 300 | 23 | 6.75"(W) 15.5"(H) 13.5"(L) | 14"(M) -"(N) | -"(X) 2.5"(Y) | Request CAD File | |
| EZ-SG17-L350 | 3/8" | 5/8" | 50' | Yes | 300 | 40 | 6.75"(W) 19.5"(H) 17"(L) | 18"(M) -"(N) | -"(X) 2.5"(Y) | CAD File | |
| EZ-SG17-L430 | 1/2" | 3/4" | 30' | Yes | 300 | 42 | 6.75"(W) 19.5"(H) 17"(L) | 18"(M) -"(N) | -"(X) 2.5"(Y) | CAD File | |
| EZ-SG17L-L350 | 3/8" | 5/8" | 50' | No | 300 | 33 | 6.75"(W) 19.5"(H) 17"(L) | 18"(M) -"(N) | -"(X) 2.5"(Y) | Request CAD File | |
| EZ-SG19-L450 | 1/2" | 3/4" | 50' | Yes | 300 | 52 | 8.5"(W) 22"(H) 19.5"(L) | 2.88"(M) -"(N) | -"(X) 20.5"(Y) | CAD File |
| Model | I.D | O.D | Length | Hose | Max PSI | Ship Weight (lbs) | Overall Dimensions (W) (H) (L) | Mounting Pattern (M) (N) | Base (X) (Y) | CAD Downloads | |
| EZ-SG17-M325 | 3/8" | 11/16" | 25' | Yes | 3000 | 46 | 6.75"(W) 19.5"(H) 17"(L) | 18"(M) -"(N) | -"(X) 2.5"(Y) | Request CAD File | |
| EZ-SG17-M425 | 1/2" | 13/16" | 25' | Yes | 2500 | 46 | 7.25"(W) 19.5"(H) 17"(L) | 2.88"(M) -"(N) | -"(X) 20.5"(Y) | Request CAD File | |
| EZ-SG19-M350 | 3/8" | 11/16" | 50' | Yes | 3000 | 63 | 8.5"(W) 22"(H) 19.5"(L) | 2.88"(M) -"(N) | -"(X) 20.5"(Y) | Request CAD File | |
| EZ-SG19-M450 | 1/2" | 13/16" | 50' | Yes | 2500 | 65 | 9.38"(W) 22"(H) 19.5"(L) | 2.88"(M) -"(N) | -"(X) 20.5"(Y) | Request CAD File |
| Model | I.D | O.D | Length | Hose | Max PSI | Ship Weight (lbs) | Overall Dimensions (W) (H) (L) | Mounting Pattern (M) (N) | Base (X) (Y) | CAD Downloads | |
| EZ-SG17-H125 | 1/4" | 9/16" | 25' | Yes | 5000 | 45 | 7.25"(W) 19.5"(H) 17"(L) | 18"(M) -"(N) | -"(X) 2.5"(Y) | Request CAD File | |
| EZ-SG17-H325 | 3/8" | 11/16" | 25' | Yes | 4000 | 46 | 7.25"(W) 19.5"(H) 17"(L) | 18"(M) -"(N) | -"(X) 2.5"(Y) | Request CAD File | |
| EZ-SG19-H150 | 1/4" | 9/16" | 50' | Yes | 5000 | 62 | 9"(W) 22"(H) 19.5"(L) | 2.88"(M) -"(N) | -"(X) 20.5"(Y) | Request CAD File | |
| EZ-SG19-H350 | 3/8" | 11/16" | 50' | Yes | 4000 | 63 | 9.5"(W) 22"(H) 19.5"(L) | 2.88"(M) -"(N) | -"(X) 20.5"(Y) | Request CAD File |
Proposition 65 Warning: Cancer and Reproductive Harm www.P65Warnings.ca.gov (California Residents Click Here)
