COXREELS® EZ-S Series “ Side Mount” spring driven hose reels for cabinet mount are compact, versatile and unique in the way they mount and operate. They feature a simple two-bolt mounting pattern for easy installation and detachment for multiple workstation
applications. S Series is available for air/water, oil, grease, oxy-acetylene and T Grade gas welding hose. The 360° hose direction allows the user to operate the reel in any direction the job demands. Common applications include service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, service vehicles or any flat vertical surface.

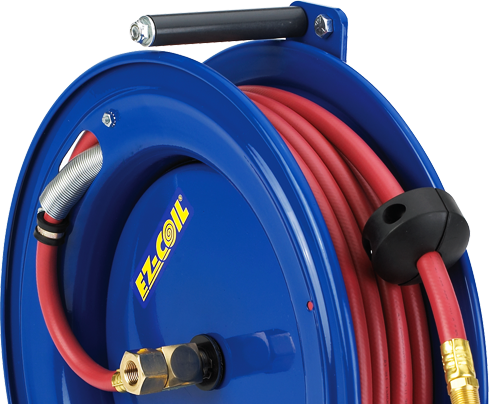

Model Shown: EZ-SR13-L350 Please refer to Overall Dimensions for the different reel sizes available.

  • Swivel

    dropdown
    • External fluid path with machined from solid brass 90°full-flow NPT swivel inlet.
      (Zinc plated steel swivel on HP models)
    • Swivel Seals: NITRILE

  • Design & Structure

    dropdown
    • Side mount design for vertical flat surface, cabinet ornenclosed space mounts
    • 2-bolt mounting pattern easily mounts & detaches for temporary or permanent installation
    • Hose control bar prevents hose from slipping off the discs

  • Retract

    dropdown
    • Enclosed factory tuned & matched cartridge-style spring motor
    • Non corrosive stainless steel spring, pawl & zinc plated ratchet
    • Multi-position lock ratchet mechanism secures hose at desired length.

  • Signature Features

    dropdown
    • Professional grade heavy duty steel construction
    • Rolled edges & ribbed discs provide strength & safety
    • Leading 2-year manufacturer's limited warranty
    • Made in the U.S.A. - Sold & Supported Worldwide
    • SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
    • EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
    • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
    • SIDE MOUNT DESIGN - Mount right for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
    • CONTROL BAR - Hose control bar prevents hose from slipping off the disc.
    • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

View Models
Share

Models

Hose/Cord/Cable Included
I.D
Hose / Cord Length
By Application
Filter Your Results
  • Low Pressure (Max 1000psi)
    dropdown
    EZ-S Series
    Model
    EZ-SL13-L125
    I.D1/4"
    O.D1/2"
    Length25'
    HoseYes
    Max PSI300
    Ship Weight (lbs)20
    Overall Dimensions (W) (H) (L)6"(W) 14.25"(H) 13"(L)
    Mounting Pattern (M) (N) 14"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads Request CAD File

    EZ-SL13L-L125
    I.D1/4"
    O.D1/2"
    Length25'
    HoseNo
    Max PSI300
    Ship Weight (lbs)18
    Overall Dimensions (W) (H) (L)6"(W) 14.25"(H) 13"(L)
    Mounting Pattern (M) (N) 14"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads Request CAD File

    EZ-SL15-L135
    I.D1/4"
    O.D1/2"
    Length35'
    HoseYes
    Max PSI300
    Ship Weight (lbs)22
    Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
    Mounting Pattern (M) (N) 14"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads Request CAD File

    EZ-SL15L-L135
    I.D1/4"
    O.D1/2"
    Length35'
    HoseNo
    Max PSI300
    Ship Weight (lbs)20
    Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
    Mounting Pattern (M) (N) 14"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads Request CAD File

    EZ-SR13-L125
    I.D1/4"
    O.D1/2"
    Length25'
    HoseYes
    Max PSI300
    Ship Weight (lbs)20
    Overall Dimensions (W) (H) (L)6"(W) 14.25"(H) 13"(L)
    Mounting Pattern (M) (N) 14"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads CAD File

    EZ-SR13L-L125
    I.D1/4"
    O.D1/2'
    Length25'
    HoseNo
    Max PSI300
    Ship Weight (lbs)18
    Overall Dimensions (W) (H) (L)6"(W) 14.25"(H) 13"(L)
    Mounting Pattern (M) (N) 14"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads Request CAD File

    EZ-SR15-L135
    I.D1/4"
    O.D1/2"
    Length35'
    HoseYes
    Max PSI300
    Ship Weight (lbs)22
    Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
    Mounting Pattern (M) (N) 14"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads CAD File

    EZ-SR15-L325
    I.D3/8"
    O.D5/8"
    Length25'
    HoseYes
    Max PSI300
    Ship Weight (lbs)23
    Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
    Mounting Pattern (M) (N) 14"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads CAD File

    EZ-SR15L-L135
    I.D1/4"
    O.D1/2"
    Length35'
    HoseNo
    Max PSI300
    Ship Weight (lbs)20
    Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
    Mounting Pattern (M) (N) 14"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads Request CAD File

    EZ-SR15L-L325
    I.D3/8"
    O.D5/8"
    Length25'
    HoseNo
    Max PSI300
    Ship Weight (lbs)17
    Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
    Mounting Pattern (M) (N) 14"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads Request CAD File

    EZ-SR17-L350
    I.D3/8"
    O.D5/8"
    Length50'
    HoseNo
    Max PSI300
    Ship Weight (lbs)32
    Overall Dimensions (W) (H) (L)5.75"(W) 18.25"(H) 17"(L)
    Mounting Pattern (M) (N) 18"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads CAD File

    EZ-SR17-L430
    I.D1/2"
    O.D3/4"
    Length30'
    HoseYes
    Max PSI300
    Ship Weight (lbs)34
    Overall Dimensions (W) (H) (L)5.75"(W) 18.25"(H) 17"(L)
    Mounting Pattern (M) (N) 18"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads CAD File

    EZ-SR17L-L350
    I.D3/8"
    O.D5/8"
    Length50'
    HoseNo
    Max PSI300
    Ship Weight (lbs)25
    Overall Dimensions (W) (H) (L)5.75"(W) 18.25"(H) 17"(L)
    Mounting Pattern (M) (N) 18"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads Request CAD File

    EZ-SR17L-L430
    I.D1/2"
    O.D3/4"
    Length30'
    HoseNo
    Max PSI300
    Ship Weight (lbs)29
    Overall Dimensions (W) (H) (L)5.75"(W) 18.25"(H) 17"(L)
    Mounting Pattern (M) (N) 18"(M) 2.5"(N)
    Base (X) (Y) -"(X) -"(Y)
    CAD Downloads Request CAD File

EZ-S Series
Model
EZ-SL13-L125
I.D1/4"
O.D1/2"
Length25'
HoseYes
Max PSI300
Ship Weight (lbs)20
Overall Dimensions (W) (H) (L)6"(W) 14.25"(H) 13"(L)
Mounting Pattern (M) (N) 14"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads Request CAD File

EZ-SL13L-L125
I.D1/4"
O.D1/2"
Length25'
HoseNo
Max PSI300
Ship Weight (lbs)18
Overall Dimensions (W) (H) (L)6"(W) 14.25"(H) 13"(L)
Mounting Pattern (M) (N) 14"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads Request CAD File

EZ-SL15-L135
I.D1/4"
O.D1/2"
Length35'
HoseYes
Max PSI300
Ship Weight (lbs)22
Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
Mounting Pattern (M) (N) 14"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads Request CAD File

EZ-SL15L-L135
I.D1/4"
O.D1/2"
Length35'
HoseNo
Max PSI300
Ship Weight (lbs)20
Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
Mounting Pattern (M) (N) 14"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads Request CAD File

EZ-SR13-L125
I.D1/4"
O.D1/2"
Length25'
HoseYes
Max PSI300
Ship Weight (lbs)20
Overall Dimensions (W) (H) (L)6"(W) 14.25"(H) 13"(L)
Mounting Pattern (M) (N) 14"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads CAD File

EZ-SR13L-L125
I.D1/4"
O.D1/2'
Length25'
HoseNo
Max PSI300
Ship Weight (lbs)18
Overall Dimensions (W) (H) (L)6"(W) 14.25"(H) 13"(L)
Mounting Pattern (M) (N) 14"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads Request CAD File

EZ-SR15-L135
I.D1/4"
O.D1/2"
Length35'
HoseYes
Max PSI300
Ship Weight (lbs)22
Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
Mounting Pattern (M) (N) 14"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads CAD File

EZ-SR15-L325
I.D3/8"
O.D5/8"
Length25'
HoseYes
Max PSI300
Ship Weight (lbs)23
Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
Mounting Pattern (M) (N) 14"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads CAD File

EZ-SR15L-L135
I.D1/4"
O.D1/2"
Length35'
HoseNo
Max PSI300
Ship Weight (lbs)20
Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
Mounting Pattern (M) (N) 14"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads Request CAD File

EZ-SR15L-L325
I.D3/8"
O.D5/8"
Length25'
HoseNo
Max PSI300
Ship Weight (lbs)17
Overall Dimensions (W) (H) (L)6"(W) 16.5"(H) 15.25"(L)
Mounting Pattern (M) (N) 14"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads Request CAD File

EZ-SR17-L350
I.D3/8"
O.D5/8"
Length50'
HoseNo
Max PSI300
Ship Weight (lbs)32
Overall Dimensions (W) (H) (L)5.75"(W) 18.25"(H) 17"(L)
Mounting Pattern (M) (N) 18"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads CAD File

EZ-SR17-L430
I.D1/2"
O.D3/4"
Length30'
HoseYes
Max PSI300
Ship Weight (lbs)34
Overall Dimensions (W) (H) (L)5.75"(W) 18.25"(H) 17"(L)
Mounting Pattern (M) (N) 18"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads CAD File

EZ-SR17L-L350
I.D3/8"
O.D5/8"
Length50'
HoseNo
Max PSI300
Ship Weight (lbs)25
Overall Dimensions (W) (H) (L)5.75"(W) 18.25"(H) 17"(L)
Mounting Pattern (M) (N) 18"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads Request CAD File

EZ-SR17L-L430
I.D1/2"
O.D3/4"
Length30'
HoseNo
Max PSI300
Ship Weight (lbs)29
Overall Dimensions (W) (H) (L)5.75"(W) 18.25"(H) 17"(L)
Mounting Pattern (M) (N) 18"(M) 2.5"(N)
Base (X) (Y) -"(X) -"(Y)
CAD Downloads Request CAD File

Model I.DO.DLengthHoseMax PSIShip Weight (lbs) Overall Dimensions (W) (H) (L) Mounting Pattern (M) (N) Base (X) (Y) CAD Downloads
EZ-SL13-L1251/4"1/2"25'Yes300206"(W) 14.25"(H) 13"(L)  14"(M) 2.5"(N)  -"(X) -"(Y)  Request CAD File
EZ-SL13L-L1251/4"1/2"25'No300186"(W) 14.25"(H) 13"(L)  14"(M) 2.5"(N)  -"(X) -"(Y)  Request CAD File
EZ-SL15-L1351/4"1/2"35'Yes300226"(W) 16.5"(H) 15.25"(L)  14"(M) 2.5"(N)  -"(X) -"(Y)  Request CAD File
EZ-SL15L-L1351/4"1/2"35'No300206"(W) 16.5"(H) 15.25"(L)  14"(M) 2.5"(N)  -"(X) -"(Y)  Request CAD File
EZ-SR13-L1251/4"1/2"25'Yes300206"(W) 14.25"(H) 13"(L)  14"(M) 2.5"(N)  -"(X) -"(Y)  CAD File
EZ-SR13L-L1251/4"1/2'25'No300186"(W) 14.25"(H) 13"(L)  14"(M) 2.5"(N)  -"(X) -"(Y)  Request CAD File
EZ-SR15-L1351/4"1/2"35'Yes300226"(W) 16.5"(H) 15.25"(L)  14"(M) 2.5"(N)  -"(X) -"(Y)  CAD File
EZ-SR15-L3253/8"5/8"25'Yes300236"(W) 16.5"(H) 15.25"(L)  14"(M) 2.5"(N)  -"(X) -"(Y)  CAD File
EZ-SR15L-L1351/4"1/2"35'No300206"(W) 16.5"(H) 15.25"(L)  14"(M) 2.5"(N)  -"(X) -"(Y)  Request CAD File
EZ-SR15L-L3253/8"5/8"25'No300176"(W) 16.5"(H) 15.25"(L)  14"(M) 2.5"(N)  -"(X) -"(Y)  Request CAD File
EZ-SR17-L3503/8"5/8"50'No300325.75"(W) 18.25"(H) 17"(L)  18"(M) 2.5"(N)  -"(X) -"(Y)  CAD File
EZ-SR17-L4301/2"3/4"30'Yes300345.75"(W) 18.25"(H) 17"(L)  18"(M) 2.5"(N)  -"(X) -"(Y)  CAD File
EZ-SR17L-L3503/8"5/8"50'No300255.75"(W) 18.25"(H) 17"(L)  18"(M) 2.5"(N)  -"(X) -"(Y)  Request CAD File
EZ-SR17L-L4301/2"3/4"30'No300295.75"(W) 18.25"(H) 17"(L)  18"(M) 2.5"(N)  -"(X) -"(Y)  Request CAD File
