EZ-P Series // EZ Coil Hose Reels

Coxreels
Series Image
  • Features Features Features
  • Applications Applications Applications

Features

COXREELS® EZ-P Series "Performance" spring driven hose reels have a long history of dependability and trouble free performance. Their compact space-saving size and heavy duty construction make them highly versatile and virtually indestructible. Time-tested proven components, superior design and craftsmanship have contributed to it´s worldwide reputation as the most trusted hose reel.

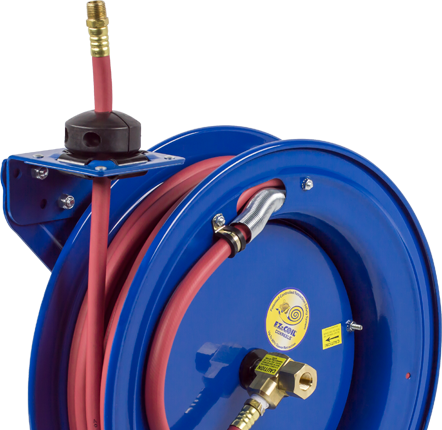

Model Shown: EZ-P-LP-350. Please refer to Overall Dimensions for the different reel sizes available.

  • Swivel

    dropdown
    • External fluid path with machined from solid brass 90º full-flow NPT swivel inlet
      Zinc plated steel swivel on HP models
    • Swivel Seals: NITRILE

  • Design & Structure

    dropdown
    • Sturdy single pedestal reel with space saving designnfacilitates workplace organization
    • Guide arm adjusts to wall, floor, vehicle & overhead positions

  • Retract

    dropdown
    • Enclosed factory tuned & matched cartridge-style spring motor
    • Non-corrosive stainless steel spring, pawl & zinc plated ratchet
    • Multi-position lock ratchet mechanism secures hose at desired length

  • Signature Features

    dropdown
    • Professional grade heavy duty steel construction
    • Rolled edges & ribbed discs provide strength & safety
    • Leading 2-year manufacturer's limited warranty
    • Made in the U.S.A. - Sold & Supported Worldwide

    • SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.

    • EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
    • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
    • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
    • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
    • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

View Models
Share

Models

Hose/Cord/Cable Included
I.D
Max PSI
Hose / Cord Length
By Application
Filter Your Results
  • Low Pressure (Max 1000psi)
    dropdown
    EZ-P Series
    Model
    EZ-P-LP-125
    I.D1/4"
    O.D1/2"
    Length25'
    HoseYes
    Max PSI300
    Ship Weight (lbs)27
    Overall Dimensions (W) (H) (L)5.88"(W) 14.88"(H) 13.5"(L)
    Mounting Pattern (M) (N) 3"(M) 5"(N)
    Base (X) (Y) 5"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-LP-135
    I.D1/4"
    O.D1/2"
    Length35'
    HoseYes
    Max PSI300
    Ship Weight (lbs)28
    Overall Dimensions (W) (H) (L)5.88"(W) 14.88"(H) 13.5"(L)
    Mounting Pattern (M) (N) 3"(M) 5"(N)
    Base (X) (Y) 5"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-LP-150
    I.D1/4"
    O.D1/2"
    Length50'
    HoseYes
    Max PSI300
    Ship Weight (lbs)40
    Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-LP-325
    I.D3/8"
    O.D5/8"
    Length25'
    HoseYes
    Max PSI300
    Ship Weight (lbs)28
    Overall Dimensions (W) (H) (L)6.5"(W) 14.88"(H) 13.5"(L)
    Mounting Pattern (M) (N) 3"(M) 5"(N)
    Base (X) (Y) 5"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-LP-330
    I.D3/8"
    O.D5/8"
    Length30'
    HoseYes
    Max PSI300
    Ship Weight (lbs)37
    Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-LP-335
    I.D3/8"
    O.D5/8"
    Length30'
    HoseYes
    Max PSI300
    Ship Weight (lbs)38
    Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-LP-350
    I.D3/8"
    O.D5/8"
    Length50'
    HoseYes
    Max PSI300
    Ship Weight (lbs)43
    Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-LP-430
    I.D1/2"
    O.D3/4"
    Length30'
    HoseYes
    Max PSI300
    Ship Weight (lbs)45
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-LP-450
    I.D1/2"
    O.D3/4"
    Length50'
    HoseYes
    Max PSI300
    Ship Weight (lbs)51
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-LPL-125
    I.D1/4"
    O.D1/2"
    Length25'
    HoseNo
    Max PSI300
    Ship Weight (lbs)24
    Overall Dimensions (W) (H) (L)5.88"(W) 14.88"(H) 13.5"(L)
    Mounting Pattern (M) (N) 3"(M) 5"(N)
    Base (X) (Y) 5"(X) 6"(Y)
    CAD Downloads Request CAD File

    EZ-P-LPL-135
    I.D1/4"
    O.D1/2"
    Length35'
    HoseNo
    Max PSI300
    Ship Weight (lbs)25
    Overall Dimensions (W) (H) (L)5.88"(W) 14.88"(H) 13.5"(L)
    Mounting Pattern (M) (N) 3"(M) 5"(N)
    Base (X) (Y) 5"(X) 6"(Y)
    CAD Downloads Request CAD File

    EZ-P-LPL-150
    I.D1/4"
    O.D1/2"
    Length50'
    HoseNo
    Max PSI300
    Ship Weight (lbs)35
    Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads Request CAD File

    EZ-P-LPL-325
    I.D3/8"
    O.D5/8"
    Length25'
    HoseNo
    Max PSI300
    Ship Weight (lbs)25
    Overall Dimensions (W) (H) (L)6.5"(W) 14.88"(H) 13.5"(L)
    Mounting Pattern (M) (N) 3"(M) 5"(N)
    Base (X) (Y) 5"(X) 6"(Y)
    CAD Downloads Request CAD File

    EZ-P-LPL-330
    I.D3/8"
    O.D5/8"
    Length30'
    HoseNo
    Max PSI300
    Ship Weight (lbs)33
    Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads Request CAD File

    EZ-P-LPL-335
    I.D3/8"
    O.D5/8"
    Length35'
    HoseNo
    Max PSI300
    Ship Weight (lbs)34
    Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads Request CAD File

    EZ-P-LPL-350
    I.D3/8"
    O.D5/8"
    Length50'
    HoseNo
    Max PSI300
    Ship Weight (lbs)36
    Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads Request CAD File

    EZ-P-LPL-430
    I.D1/2"
    O.D3/4"
    Length30'
    HoseNo
    Max PSI300
    Ship Weight (lbs)40
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads Request CAD File

    EZ-P-LPL-450
    I.D1/2"
    O.D3/4"
    Length50'
    HoseNo
    Max PSI300
    Ship Weight (lbs)43
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads Request CAD File

  • Medium Pressure (From 1000psi to 4000psi)
    dropdown
    EZ-P Series
    Model
    EZ-P-MP-425
    I.D1/2"
    O.D13/16"
    Length25'
    HoseYes
    Max PSI2500
    Ship Weight (lbs)49
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-MP-430
    I.D1/2"
    O.D13/16"
    Length30'
    HoseYes
    Max PSI2500
    Ship Weight (lbs)51
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-MPL-425
    I.D1/2"
    O.D13/16"
    Length25'
    HoseNo
    Max PSI2500
    Ship Weight (lbs)42
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads Request CAD File

    EZ-P-MPL-430
    I.D1/2"
    O.D13/16"
    Length30'
    HoseNo
    Max PSI2500
    Ship Weight (lbs)43
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads Request CAD File

  • High Pressure (4000psi and up)
    dropdown
    EZ-P Series
    Model
    EZ-P-HP-125
    I.D1/4"
    O.D9/16"
    Length25'
    HoseYes
    Max PSI5000
    Ship Weight (lbs)48
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-HP-325
    I.D3/8"
    O.D11/16"
    Length25'
    HoseYes
    Max PSI4000
    Ship Weight (lbs)49
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads CAD File

    EZ-P-HPL-125
    I.D1/4"
    O.D9/16"
    Length25'
    HoseNo
    Max PSI5000
    Ship Weight (lbs)42
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads Request CAD File

    EZ-P-HPL-325
    I.D3/8"
    O.D11/16"
    Length25'
    HoseNo
    Max PSI4000
    Ship Weight (lbs)42
    Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
    Mounting Pattern (M) (N) 4"(M) 5"(N)
    Base (X) (Y) 6"(X) 6"(Y)
    CAD Downloads Request CAD File

EZ-P Series
Model
EZ-P-LP-125
I.D1/4"
O.D1/2"
Length25'
HoseYes
Max PSI300
Ship Weight (lbs)27
Overall Dimensions (W) (H) (L)5.88"(W) 14.88"(H) 13.5"(L)
Mounting Pattern (M) (N) 3"(M) 5"(N)
Base (X) (Y) 5"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-LP-135
I.D1/4"
O.D1/2"
Length35'
HoseYes
Max PSI300
Ship Weight (lbs)28
Overall Dimensions (W) (H) (L)5.88"(W) 14.88"(H) 13.5"(L)
Mounting Pattern (M) (N) 3"(M) 5"(N)
Base (X) (Y) 5"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-LP-150
I.D1/4"
O.D1/2"
Length50'
HoseYes
Max PSI300
Ship Weight (lbs)40
Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-LP-325
I.D3/8"
O.D5/8"
Length25'
HoseYes
Max PSI300
Ship Weight (lbs)28
Overall Dimensions (W) (H) (L)6.5"(W) 14.88"(H) 13.5"(L)
Mounting Pattern (M) (N) 3"(M) 5"(N)
Base (X) (Y) 5"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-LP-330
I.D3/8"
O.D5/8"
Length30'
HoseYes
Max PSI300
Ship Weight (lbs)37
Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-LP-335
I.D3/8"
O.D5/8"
Length30'
HoseYes
Max PSI300
Ship Weight (lbs)38
Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-LP-350
I.D3/8"
O.D5/8"
Length50'
HoseYes
Max PSI300
Ship Weight (lbs)43
Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-LP-430
I.D1/2"
O.D3/4"
Length30'
HoseYes
Max PSI300
Ship Weight (lbs)45
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-LP-450
I.D1/2"
O.D3/4"
Length50'
HoseYes
Max PSI300
Ship Weight (lbs)51
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-LPL-125
I.D1/4"
O.D1/2"
Length25'
HoseNo
Max PSI300
Ship Weight (lbs)24
Overall Dimensions (W) (H) (L)5.88"(W) 14.88"(H) 13.5"(L)
Mounting Pattern (M) (N) 3"(M) 5"(N)
Base (X) (Y) 5"(X) 6"(Y)
CAD Downloads Request CAD File

EZ-P-LPL-135
I.D1/4"
O.D1/2"
Length35'
HoseNo
Max PSI300
Ship Weight (lbs)25
Overall Dimensions (W) (H) (L)5.88"(W) 14.88"(H) 13.5"(L)
Mounting Pattern (M) (N) 3"(M) 5"(N)
Base (X) (Y) 5"(X) 6"(Y)
CAD Downloads Request CAD File

EZ-P-LPL-150
I.D1/4"
O.D1/2"
Length50'
HoseNo
Max PSI300
Ship Weight (lbs)35
Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads Request CAD File

EZ-P-LPL-325
I.D3/8"
O.D5/8"
Length25'
HoseNo
Max PSI300
Ship Weight (lbs)25
Overall Dimensions (W) (H) (L)6.5"(W) 14.88"(H) 13.5"(L)
Mounting Pattern (M) (N) 3"(M) 5"(N)
Base (X) (Y) 5"(X) 6"(Y)
CAD Downloads Request CAD File

EZ-P-LPL-330
I.D3/8"
O.D5/8"
Length30'
HoseNo
Max PSI300
Ship Weight (lbs)33
Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads Request CAD File

EZ-P-LPL-335
I.D3/8"
O.D5/8"
Length35'
HoseNo
Max PSI300
Ship Weight (lbs)34
Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads Request CAD File

EZ-P-LPL-350
I.D3/8"
O.D5/8"
Length50'
HoseNo
Max PSI300
Ship Weight (lbs)36
Overall Dimensions (W) (H) (L)6.75"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads Request CAD File

EZ-P-LPL-430
I.D1/2"
O.D3/4"
Length30'
HoseNo
Max PSI300
Ship Weight (lbs)40
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads Request CAD File

EZ-P-LPL-450
I.D1/2"
O.D3/4"
Length50'
HoseNo
Max PSI300
Ship Weight (lbs)43
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads Request CAD File

Model I.DO.DLengthHoseMax PSIShip Weight (lbs) Overall Dimensions (W) (H) (L) Mounting Pattern (M) (N) Base (X) (Y) CAD Downloads
EZ-P-LP-1251/4"1/2"25'Yes300275.88"(W) 14.88"(H) 13.5"(L)  3"(M) 5"(N)  5"(X) 6"(Y)  CAD File
EZ-P-LP-1351/4"1/2"35'Yes300285.88"(W) 14.88"(H) 13.5"(L)  3"(M) 5"(N)  5"(X) 6"(Y)  CAD File
EZ-P-LP-1501/4"1/2"50'Yes300406.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
EZ-P-LP-3253/8"5/8"25'Yes300286.5"(W) 14.88"(H) 13.5"(L)  3"(M) 5"(N)  5"(X) 6"(Y)  CAD File
EZ-P-LP-3303/8"5/8"30'Yes300376.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
EZ-P-LP-3353/8"5/8"30'Yes300386.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
EZ-P-LP-3503/8"5/8"50'Yes300436.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
EZ-P-LP-4301/2"3/4"30'Yes300457"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
EZ-P-LP-4501/2"3/4"50'Yes300517"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
EZ-P-LPL-1251/4"1/2"25'No300245.88"(W) 14.88"(H) 13.5"(L)  3"(M) 5"(N)  5"(X) 6"(Y)  Request CAD File
EZ-P-LPL-1351/4"1/2"35'No300255.88"(W) 14.88"(H) 13.5"(L)  3"(M) 5"(N)  5"(X) 6"(Y)  Request CAD File
EZ-P-LPL-1501/4"1/2"50'No300356.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  Request CAD File
EZ-P-LPL-3253/8"5/8"25'No300256.5"(W) 14.88"(H) 13.5"(L)  3"(M) 5"(N)  5"(X) 6"(Y)  Request CAD File
EZ-P-LPL-3303/8"5/8"30'No300336.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  Request CAD File
EZ-P-LPL-3353/8"5/8"35'No300346.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  Request CAD File
EZ-P-LPL-3503/8"5/8"50'No300366.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  Request CAD File
EZ-P-LPL-4301/2"3/4"30'No300407"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  Request CAD File
EZ-P-LPL-4501/2"3/4"50'No300437"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  Request CAD File
EZ-P Series
Model
EZ-P-MP-425
I.D1/2"
O.D13/16"
Length25'
HoseYes
Max PSI2500
Ship Weight (lbs)49
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-MP-430
I.D1/2"
O.D13/16"
Length30'
HoseYes
Max PSI2500
Ship Weight (lbs)51
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-MPL-425
I.D1/2"
O.D13/16"
Length25'
HoseNo
Max PSI2500
Ship Weight (lbs)42
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads Request CAD File

EZ-P-MPL-430
I.D1/2"
O.D13/16"
Length30'
HoseNo
Max PSI2500
Ship Weight (lbs)43
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads Request CAD File

Model I.DO.DLengthHoseMax PSIShip Weight (lbs) Overall Dimensions (W) (H) (L) Mounting Pattern (M) (N) Base (X) (Y) CAD Downloads
EZ-P-MP-4251/2"13/16"25'Yes2500497"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
EZ-P-MP-4301/2"13/16"30'Yes2500517"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
EZ-P-MPL-4251/2"13/16"25'No2500427"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  Request CAD File
EZ-P-MPL-4301/2"13/16"30'No2500437"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  Request CAD File
EZ-P Series
Model
EZ-P-HP-125
I.D1/4"
O.D9/16"
Length25'
HoseYes
Max PSI5000
Ship Weight (lbs)48
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-HP-325
I.D3/8"
O.D11/16"
Length25'
HoseYes
Max PSI4000
Ship Weight (lbs)49
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads CAD File

EZ-P-HPL-125
I.D1/4"
O.D9/16"
Length25'
HoseNo
Max PSI5000
Ship Weight (lbs)42
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads Request CAD File

EZ-P-HPL-325
I.D3/8"
O.D11/16"
Length25'
HoseNo
Max PSI4000
Ship Weight (lbs)42
Overall Dimensions (W) (H) (L)7"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N) 4"(M) 5"(N)
Base (X) (Y) 6"(X) 6"(Y)
CAD Downloads Request CAD File

Model I.DO.DLengthHoseMax PSIShip Weight (lbs) Overall Dimensions (W) (H) (L) Mounting Pattern (M) (N) Base (X) (Y) CAD Downloads
EZ-P-HP-1251/4"9/16"25'Yes5000487"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
EZ-P-HP-3253/8"11/16"25'Yes4000497"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
EZ-P-HPL-1251/4"9/16"25'No5000427"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  Request CAD File
EZ-P-HPL-3253/8"11/16"25'No4000427"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  Request CAD File

Accessories

Swing Bracket
Swing Bracket
Swivel Bracket
Swivel Bracket
EZ-Up Bracket
EZ-Up Bracket
EZ-Up "I" or "H" Beam Adapter
EZ-Up "I" or "H" Beam Adapter
Mounting Bracket
Mounting Bracket
90° Elbows
90° Elbows
Hose Guards
Hose Guards
Hose Stops
Hose Stops
Quick Disconnects
Quick Disconnects
Icon
Proposition 65 Warning: Cancer and Reproductive Harm www.P65Warnings.ca.gov (California Residents Click Here)

Contact Us

Have questions? We are here for you. Please feel free to get in touch with us using the tabs and forms below to contact us and request more information about COXREELS® products and services. We will handle your inquiries and will get back to you as soon as we can.
Contact Us

Find Distributors

Distributor information will be provided through your preferred method of contact. Click here to submit a request that will be routed to the appropriate distributor.
Find a Distributor

Tap to Call Tap to Email
Loading
